If you are running freight through the industrial heart of Chicago’s South Side, the Norfolk Southern 47th Street yard (C47) is your ultimate proving ground. Handling over 700,000 lifts a year, this historic 24/7 facility is a massive, grounded freight factory geared specifically toward East Coast and Ohio River Valley traffic.

But do not let the modern upgrades fool you. Between a hyper-strict safety culture, a massive consolidation of the gate entrances, and a notorious low-clearance bridge trap right outside the fence, C47 will relentlessly punish unprepared drivers and dispatchers.

Here is the unfiltered, ground-level intel you need to get loaded, stay legal, and get back on the Dan Ryan expressway.

Norfolk Southern 47th Street Administrative and Operational Parameters

Norfolk Southern has poured over $130 million into this yard to modernize it, and they expect you to be just as dialed in.

The days of showing up with a paper manifest and talking to a clerk are dead. You must master their yard rules and digital infrastructure before you dispatch a single truck.

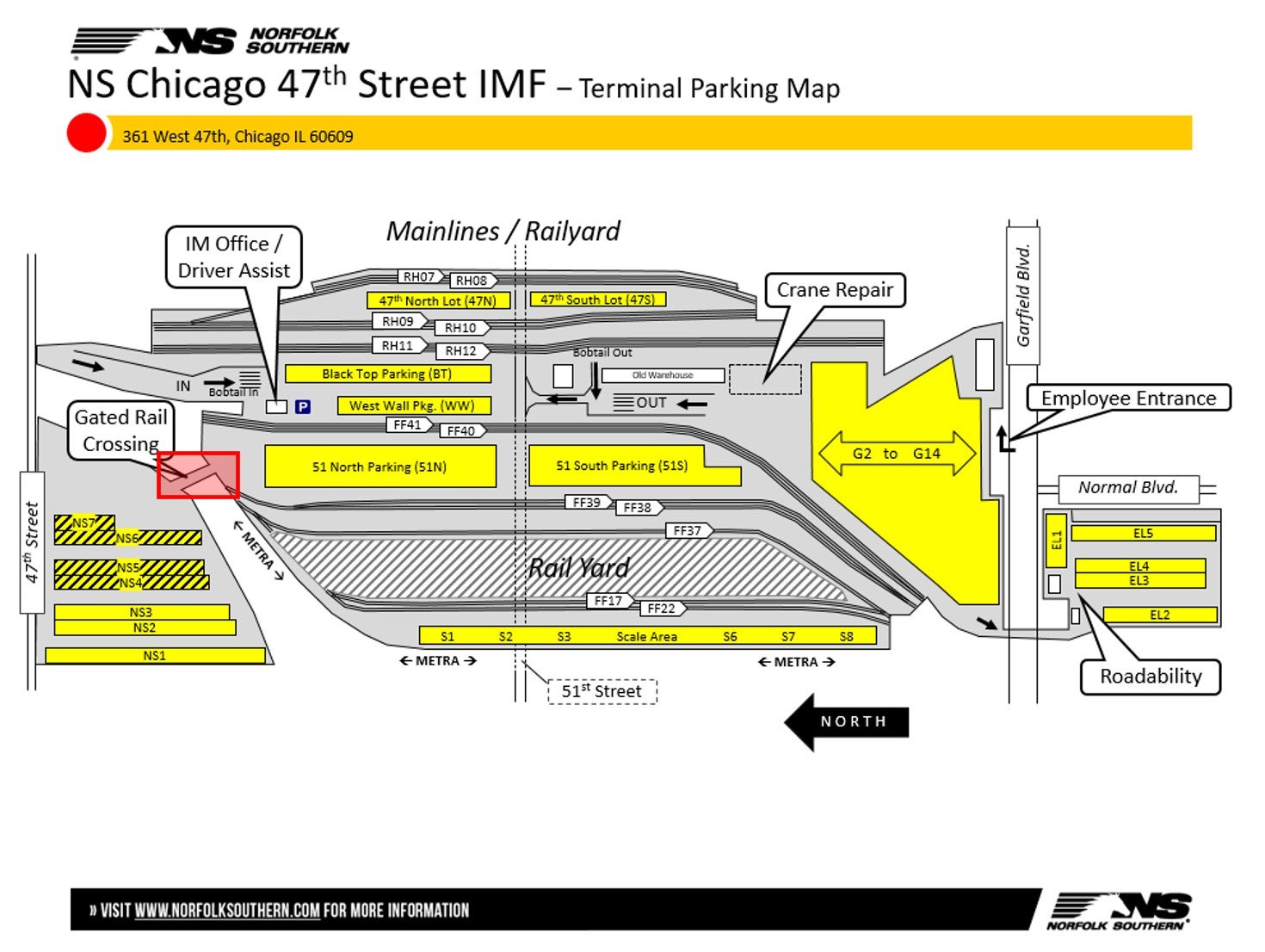

> View the Full Norfolk Southern 47th Street Facility Map

Norfolk Southern 47th Approach & The Gate

Accessing C47 requires navigating the heavy urban congestion off the Dan Ryan (I-90/I-94). The city streets are tight, and local law enforcement has zero patience for heavy equipment idling on the shoulders.

The Gate Consolidation Rule:

As of March 2024, the old street entrance to the Wheeler Lot is permanently closed. All traffic must now funnel through the main terminal entrance on 47th Street and be regulated via the North end of the scale track.

The Tech Mandate:

You must use the ExpressNS+ mobile app. If your driver arrives without a pre-generated QR code or Express Code, they will stall the gate.

The app gives you your visual parking map and eJ1 receipts instantly. Make sure your carrier’s SCAC is actively vetted by NS, and the driver’s CDL matches exactly, no extra dashes or spaces, or the automated gate system (AGS) will reject you.

Inside Norfolk Southern 47th

C47 is primarily a "grounded" facility, utilizing massive wide-span cranes on the 3,500-foot East Side pad tracks. Because containers are stacked in blocks rather than stored on wheels, velocity looks different here.

• The Turn-Time Reality: A live transfer from rail to truck can easily push up to three hours. The crane operator has to locate your box in the stack, verify the ID, and lower it. You cannot rush this process.
• The Chassis Hustle: Because it’s a grounded yard, you have to bring the wheels. DCLI is the dominant provider here. If you show up for a pickup without a confirmed, road-worthy chassis, you will get hit with split-gate charges and completely blow your HOS for the day.

Driver Survival Guide: The Bridge Trap & Safety Culture

The 47th Street yard is highly policed by terminal management and special agents in unmarked vehicles. It is described as a "very, very safe" but intense environment.

The 13'4" Bridge Trap (CRITICAL):

When your driver exits the 47th Street gate, they must turn right toward Wentworth Avenue and the expressway. If they turn left, they will immediately encounter a railroad underpass posted at 13'6". Local drayage veterans know this bridge actually rides closer to 13'4" due to street repaving. It will peel the roof off your container in an instant. Turn right. Always turn right.

Uncompromising PPE Standards:

If you step out of your cab without meeting the exact uniform specs, you will be escorted off the property.

• Footwear: 6-inch leather (or leather-like) boots with a strictly defined 90-degree, 3/8-inch heel to prevent slips on rail ballast.
• Visibility: ANSI Class II or III safety vest worn as the outermost layer.
• Restrictions: No shorts, no tank tops, and absolutely no snag-hazard jewelry (rings, earrings).

Staging & Parking:

There is zero on-site staging for trucks waiting on a unit. If you are early, you must use off-site third-party lots like Store My Truck (4633 S Racine Ave) to stage securely without catching a street-parking fine.
